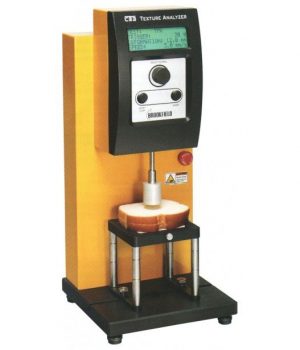

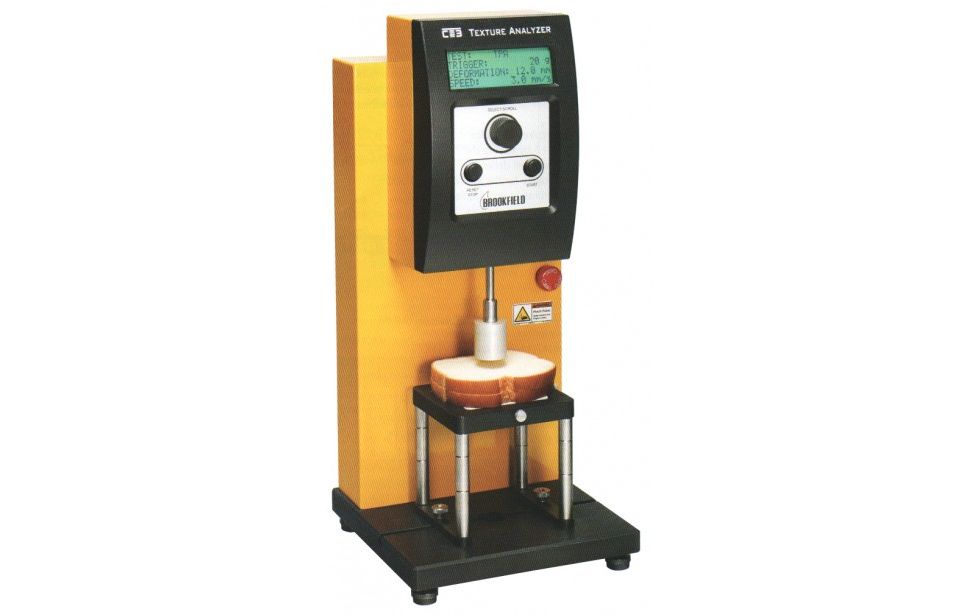

CT3
Texture Analyzer
When texture changes, you need answers fast - not a complex setup. CT3 (Compression and Tension) is built for quick, repeatable testing in stand-alone mode. Using standard methods, QC teams can run simple pass/fail checks and make confident, repeatable decisions for routine production and batch release.
• Fast checks for incoming materials, in-process control, and batch release.
• Stand-alone operation with built-in test modes reduces setup steps and training time.
• Standard test modes plus calibration check support repeatable method setup and QC workflows.
• Compression and tension testing support rapid quality control pass/fail analysis.
• Choice of load range matches product strength and sensitivity needs.
• Flexible probe and fixtures expand sample sizes and application coverage.
CT3 Model Specifications :
| Speed Range |
0.01-0.1 mm/s in increments of 0.01 mm/s;
0.1-10mm/s in increments of 0.1 mm/s |
| Speed Accuracy |
±0.1% of set speed |
| Position Range |
0-101.6 mm |
| Position Resolution |
0.1 mm |
| Position Accuracy |
0.1 mm |
| Sample Capacity |
Compression distance up to 10 cm;
Accomodates samples up to 22.5 cm (<9 in) |
| Probe Shaft Clearance |
8 cm from back wall |
| Load Cell Accuracy |
±0.5% Full Scale Range under most conditions |
| Dimensions (W × D × H) |
10.5 × 10.5 × 24 in (26.7 × 26.7 × 61.0 cm) |
| Weight |
37 lb (16.8 kg) |
To download the brochure, please click : BROCHURE
